Description
Feature :

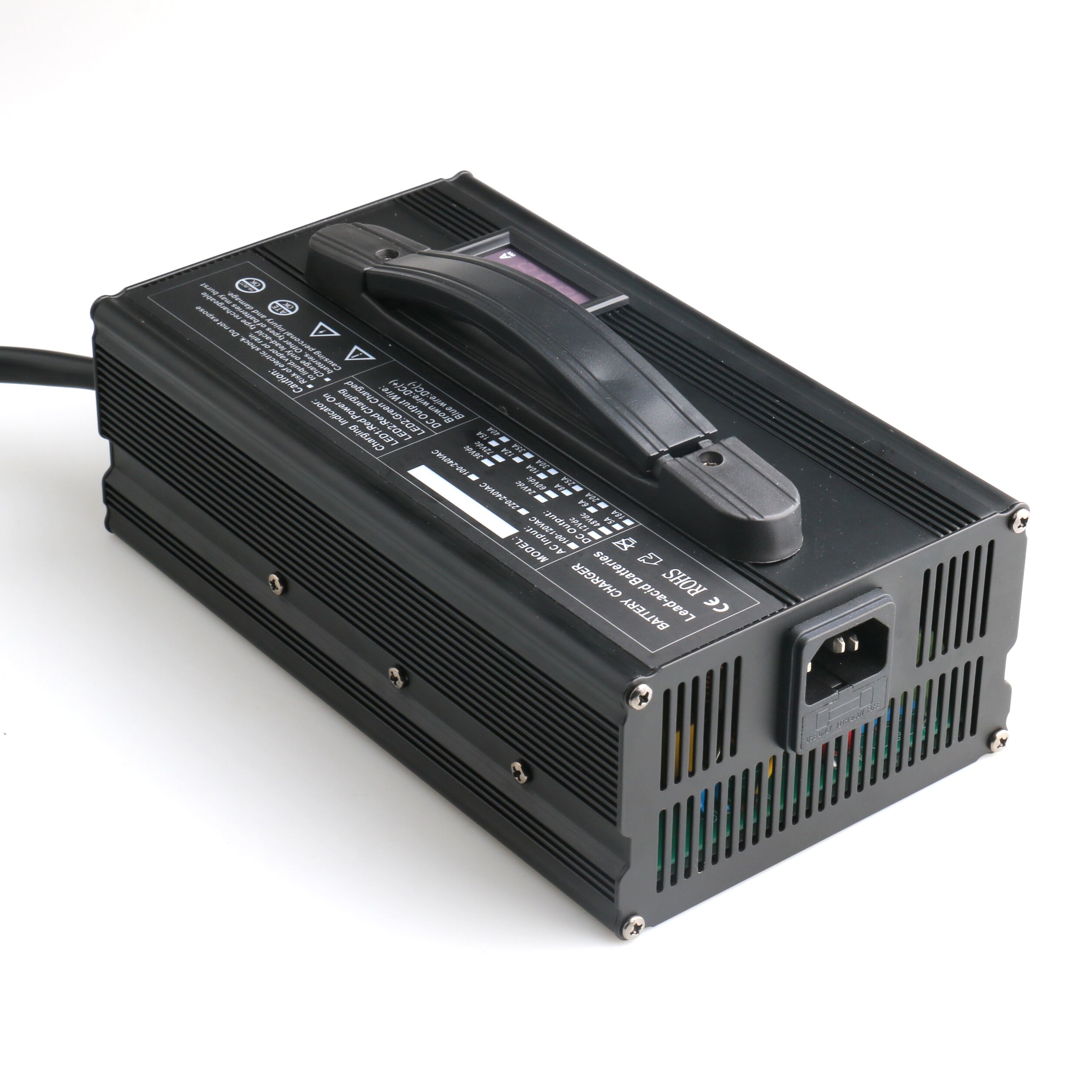

1. Aluminium case , light weight
2. Input voltage ; AC 100 V ~240 V 50 / 60 HZ
3. Max wattage : 900 W
4. Charge mode : 3 stage ( CC CV float mode )
5. Charging : High saturation and efficiency
6. Output Connector : Alligator Clips
The 3-stage mode charging :
First stage ( constant current ) : The charger will supply constant current for the battery
Second stage ( constant voltage ) : The voltage will be rising under the first stage, when it reach constant voltage value, it will turn into the second stage. The current will be slowly smaller until it reduce to floating value,the CV stage will end.
Third stage ( Floating charging ) : When the current is approaching the value of transition, the charger will cut down to the given current gradually, that means the battery power is full and indicator light turn to green. At this moment, the battery can be stopped charging or keep on trickle current charging for half an hour.
CONSTANT CHARGING VOLTAGE (LIMITED)
Voltage
- 12V
- 24V
- 36V
- 48V
- 72V
LiFePO4
- 14.6V
- 29.4V
- 43.8V
- 58.4V
- 87.6V
CONSTANT CHARGE CURRENT
Voltage
- 12V
- 24V
- 36V
- 48V
- 72V
Limited Current (Amps-AH)
- 30
- 25
- 18
- 15
- 10
Weight: 7,7 lb
Size: 230*135*70mm
Protection: SCP,OVP,OCP,OTP
Input Voltage: 85VAC-250VAC
Max Wattage: 900W
– Full automatic transition of CC, CV and Float/cut off (CC, CV 3-stage charger)
– Precise limit of voltage and current. Guarantee fully charged and avoid over charge.
– Protection: Short Circuit, Over Voltage, Over temperature, Reverse polarity protection, DC output isolated from AC input.
– High Efficiency, 95%-98%, PFC: 0.96 eco-friendly
– 2 LED indicators, RED (Power On), RED/GREEN (charging/full).
– CE, ROHS, ISO9001, ISO14001 Certified.
– Safe and high quality – Advanced high frequency switching mode power supply technology.
– Aluminum housing, portable and reliable.
