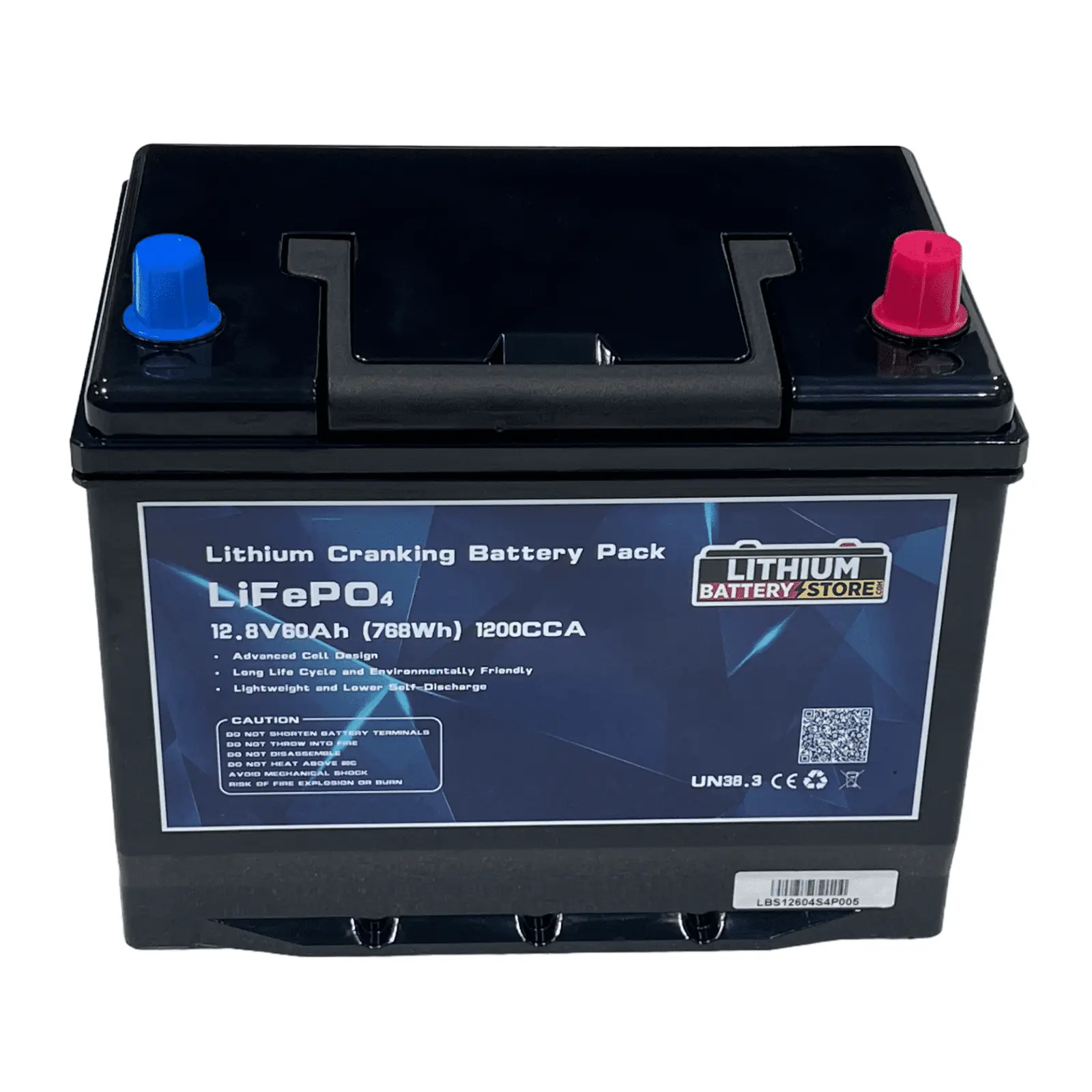

12V60AH 1200CCA

Description

Basic Electrical Specifications:
Nominal Capacity：60Ah
Nominal voltage：12.8V
Cycle Life：≥ 2000 cycles, more than 80% at 0.5C charge and 0.5C discharge at 80% DOD 25℃

Mechanical Specifications:
Dimension:260(L)*175(W)*200(H)mm or 10.24(L)*6.89(W)*7.87(H)in
Weight:9.25kg/20.39lb
Cell type / Format: Pouch Cell-LiFePO4
Terminal:conventional battery design with solid brass terminal posts and base rail for secure mounting making for quick and easy replacement.

Charge and Discharge Specifications:
Charge Method:CC-CV
Charge voltage:15.6V±0.2V
Discharge cut-off voltage: 10V±0.2V
Continuous discharge current: 200A
MAX. pulse discharge current:300A for 120 sec; 400A for 10 sec.

Temperature Specifications:
Charge temperature:0 to 45°C
Discharge temperature:-20 to 55°C
Storage temperature:-20 to 45°C

Advantages:
10X More Power
Lithium iron phosphate LiFePO4 batteries can produce>2000 cycles, more than 80% at 0.5C charge and 0.5C discharge at 80% DOD 25℃. While the lead acid/GEL battery can only retain 300 cycle.

Easy Install
All LBS batteries come with the familiar conventional battery design with solid brass terminal posts and base rail for secure mounting making for quick and easy replacement.

Zero Maintenance.
LBS battery do not require any maintenance.

50% Lighter
Lithium battery store lithium battery weights almost half of an equivalent 12V AGM, GEL lead acid, battery.

Automatic cell balancing (by the BMS)
LBS battery ensures that the cells are always in balance, and maintains the quality and efficiency of the battery. The BMS is with full protections w/ high or low voltages, high currents, short circuits, and excessive heat or cold protections
