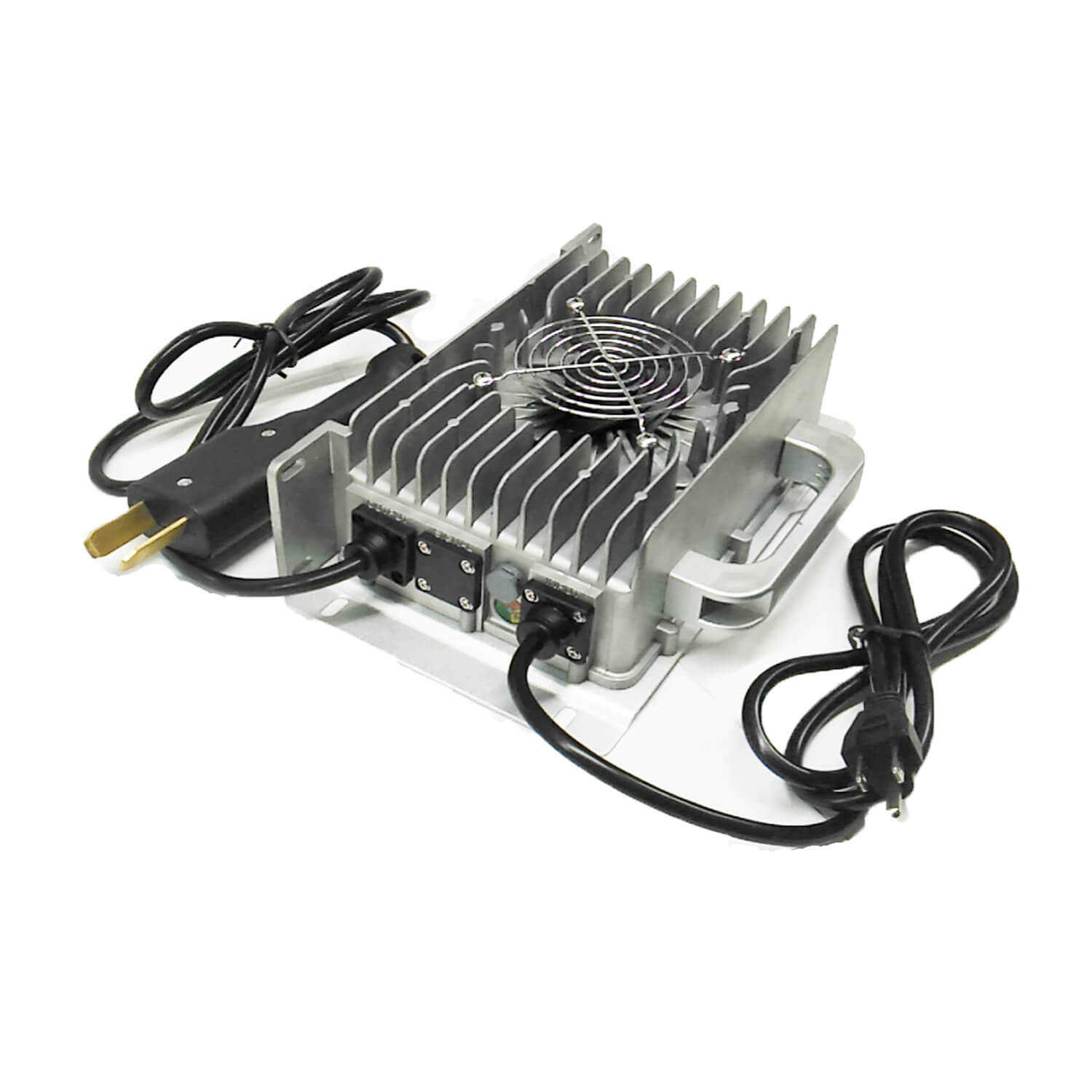

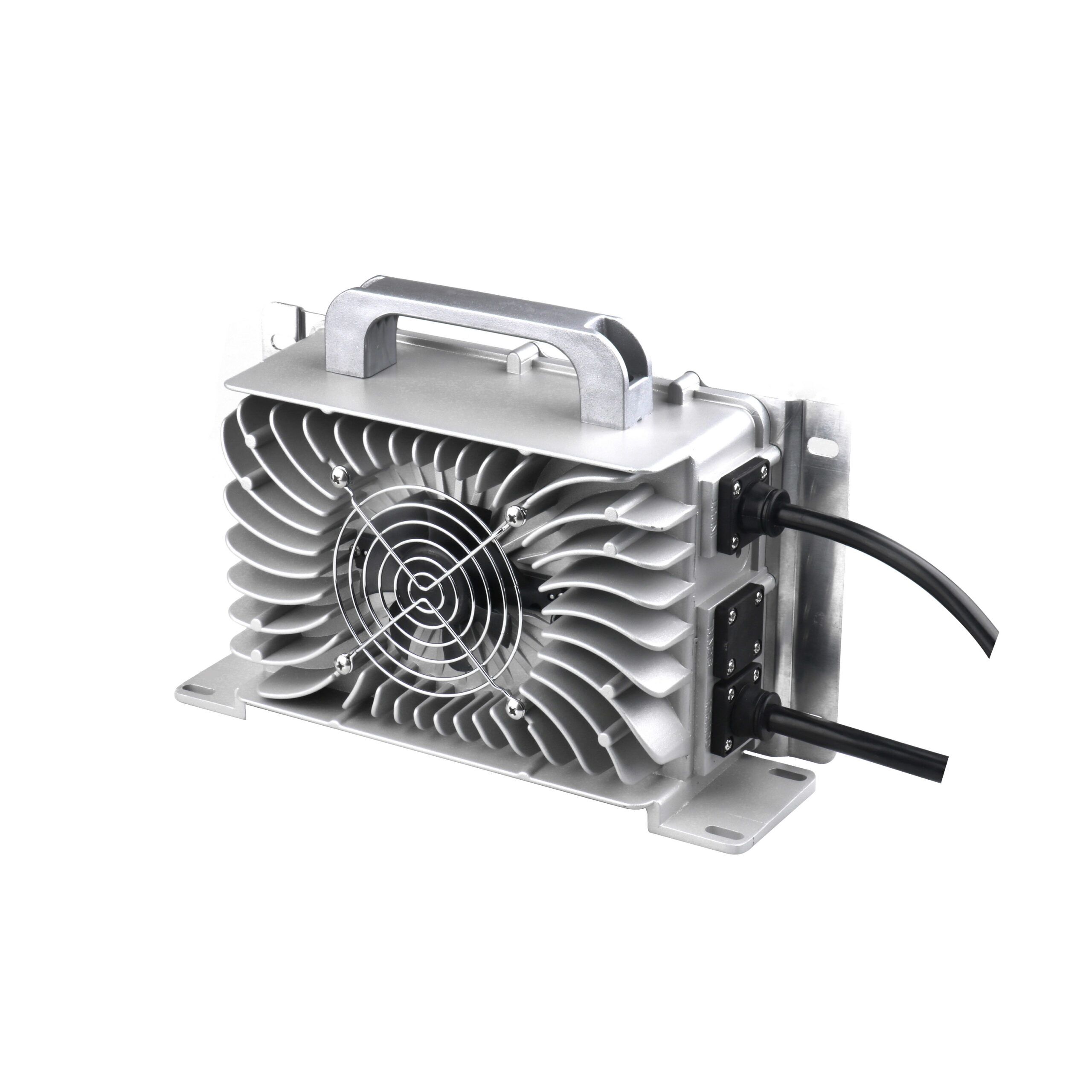

LBS-1200W Charger

The series chargers design of irrigation fully-sealed structure. The products are suitable for lead-acid batteries, lithium batteries, nickel-hydrogen batteries, etc. They are used for cycle charging of battery packs of electric vehicles, motorcycles, sightseeing vehicles, forklifts, logistics vehicles, golf carts, patrol cars, ships,communication equipment, etc.

$460.00$500.00

-

Bulk pricing discount? Call us at 941-210-4921

Description

Product models:

specifications and models Input Voltage Range Rated Output Voltage Max Output voltage Max Output Current
LBS-1225A AC90~264V 12V 16.5V 25A
LBS-2430A AC90~264V 24V 33.0V 30A
LBS-3620A AC90~264V 36V 49.5V 20A
LBS-4825A AC90~264V 48V 66.0V 25A
LBS-6020A AC90~264V 60V 82.5V 20A
LBS-7218A AC90~264V 72V 99.0V 18A

Technical Parameters:

– Ac Input Wide Voltage,Range: AC90V~264V;
– AC Input Frequency Range: 40~70Hz
– With APFC function,Power Factor:≥ 0.98
– Soft Switching Technology,Efficiency:≥ 93.0%
– Protection Level: IP67
– Operating Temperature: – 40 ℃ ~ + 60 ℃
– Storage Temperature:- 55 ℃ ~ + 100 ℃
– CAN Communication Function (optional)
– 12V3A Auxiliary Power Supply (optional)
– LED Light Indicator for Charging Process
– Noise: ≤45 db
– Overall Size: 282 ×146× 82 (mm)
– Net Weight: 5.0kg

Input Frequency 40-70Hz
Stand-by Consumption ≤ 5W
Main Output Output Mode CV / CC
Output Power 1500W@220VAC
CV Accuracy ±1%
Ripple Voltage Coefficient 5%
Low Voltage Output Output Mode Constant Voltage
Output Voltage 13.8V
Rated Current 5A
CV Accuracy ±2%
Maximum Current 5.5A±0.5A
Output Power ≥ 62.5W
Ripple Voltage Coefficient 1%
Communication Function CAN Communication Yes
Baud Rate 125Kbps、250Kbps、500Kbps
Terminal Resistance N/A

Protection Function:

Overheat Protection when the internal temperature of the charger exceeds 80 ℃, the charging current will reduce automatically. When it exceeds 85 ℃, the charger shutdown for protection. When the temperature drop, the charger automatically resumes to charge.
Short Circuit Protection when the output short circuit, the charger will automatically shut down the output. After troubleshooting, the battery can be reconnected to resume charging.
Battery Reverse Connection Protection when the battery is reverse connected, the internal circuit of the charger will automatically disconnect from the battery, without charging, without damaging the charger.
low-voltage&Over-voltage Protection If the input voltage is lower than 90V or higher than 264V, the charger will shut down protectively and automatically resume working with the voltage is normal again.
Full Automatic Shutdown Automatically shut down after full charge.
Output Over-current Protection Stop the output when exceeds + 1% of the maximum output current
C A N communication Protection Automatically stop the output when CAN communication fails.

Dimensions and Weight

Weight 11.02 lbs
Dimensions 11.1 × 5.75 × 3.23 in
Voltage

12V, 24V, 36V, 48V, 72V

Connector Type

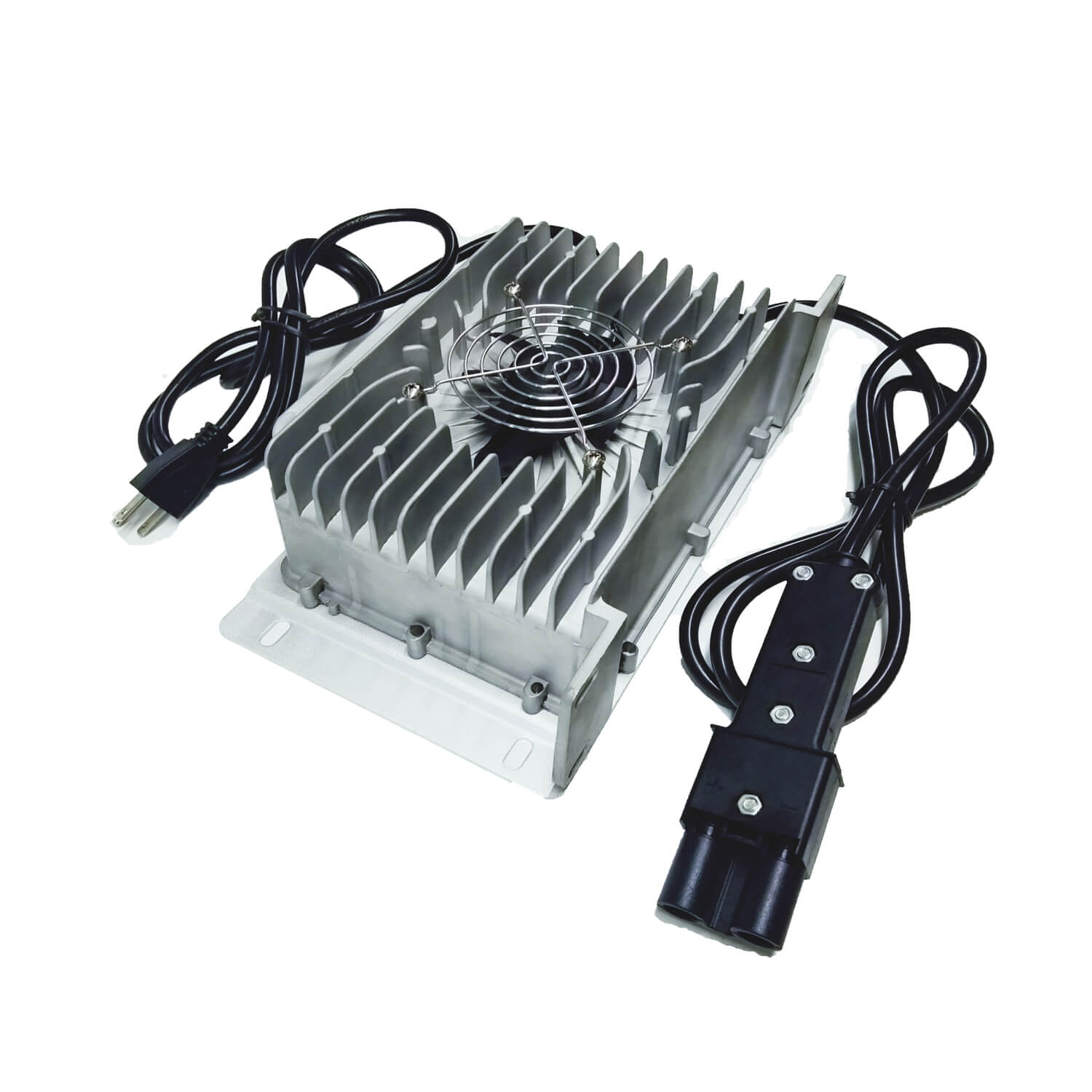

O Rings (Included), Anderson Connector (+$40), RXV Golf Cart Connector (+$40)
